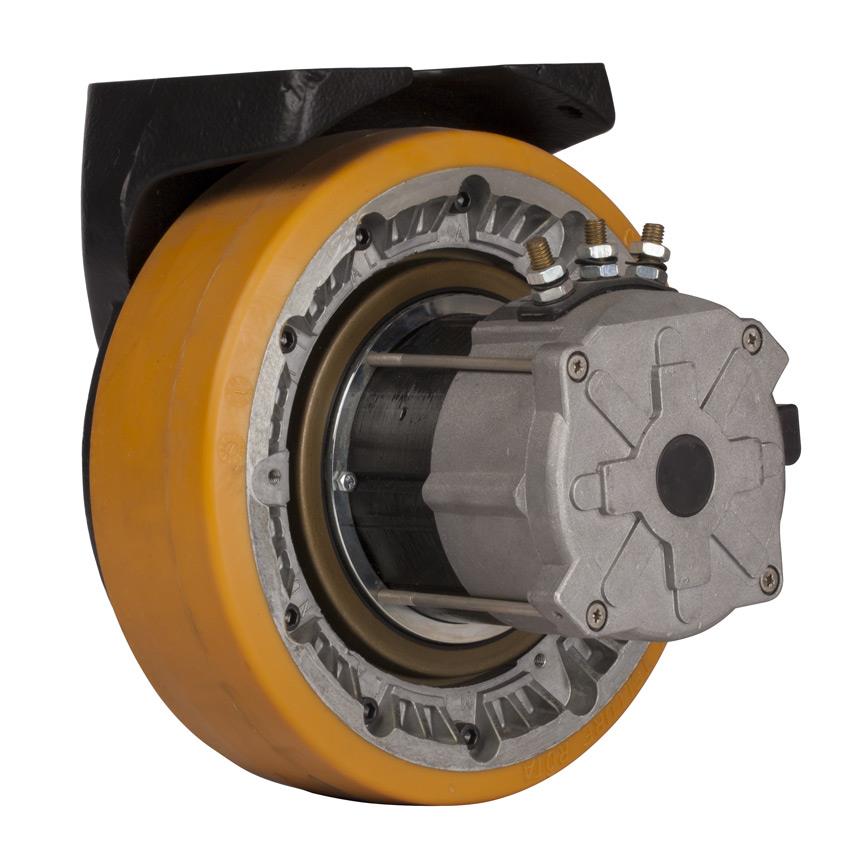

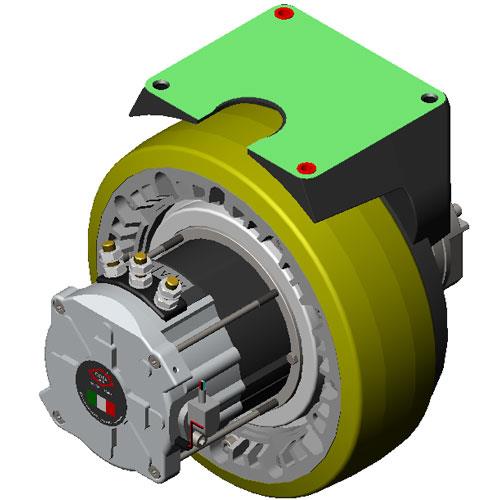

G1C
Drive wheels with horizontal motors, suitable for medium-intensity static loads
application
Forklift trucks and transpallets - small ride-on sweeper and floor washer motorcycles
description
The G1C drive wheels are produced in nodular cast iron with an excellent elongation coefficient
| Ratio |
1:20 ÷ 1:34 ÷ 1:43 |
| AC Motor |
500 ÷ 1500 V |
| Voltage |
24 ÷ 48 V |

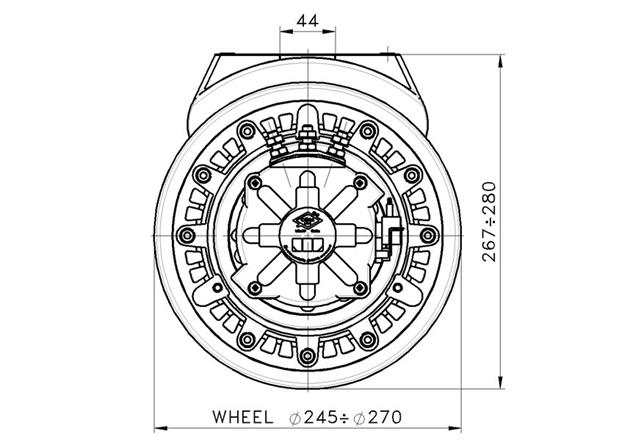

| Wheel |
ø=245/250/270
h=76/101 |
| Wheel Material |
Rubber
Polyurethane 60÷92 Sh
No Marking Rubber |
| Max Load |
540 ÷ 900 Kg |
| Brake |
4.5 ÷ 20 Nm |
| Encoder |
32/64 Pulse |
| Speed Max |
5 ÷ 9 Km/h |
| Handling Equipment Up |
3000 Kg |
| Cleaning Equipment Up |
1200 Kg |
| Max Torque |
412 ÷ 574 Nm |
| 2000 h Torque |
268 ÷ 297 Nm |
